Metal Foam Acoustic Ceiling Tiles

Home » Room Acoustics » Acoustic Ceiling Tiles » Metal Foam Acoustic Ceiling Tiles

Scroll down for comparisons between Standard, Medium, and Ultra.

MATERIAL: Expanded perforated metal with melamine foam backing.
PATTERN: Standard, Medium and Ultra
FEATURES: Expanded metal design.
APPLICATIONS: Offices, conference rooms, board rooms, airports, lobbies, convention centers, retail stores.
THICKNESS: .25" or .50"
SIZES: Nominal 24"x24", 24"x48".
COLOR: White metal, chromed metal with colored backing inserts (light gray, charcoal gray and white).
FLAMMABILITY: Class 1 fire-rated for smoke density and flame spread.
INSTALLATION: Layin - 15/16” teebar grid system. Slight tegular edge.

 Highly modern decorative Acoustic Ceiling Tiles with high-tech expanded perforated metal grid and melamine foam backing. Available in Standard, Medium and Ultra patterns. Perfect for offices, conference rooms, board rooms, airports, lobbies, convention centers and retail stores. White metal and chromed metal available with colored backing inserts of light gray, charcoal gray, or white.

• Expanded Metal -  Fiber Free
• Decorative - High Style
• Excellent sound absorption qualities
• Affordable and easily installed

Standard 2' x 2' comes in a box of 15
Medium Style = Call for Pricing
Ultra Style = Call for Pricing

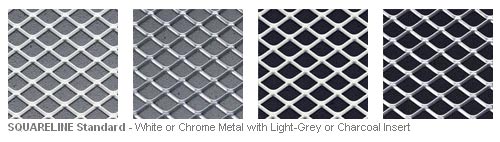

SQUARELINE Standard

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat or Beveled profile
Panel Sizes: 24" x 24"
Open Surface: 68.2%

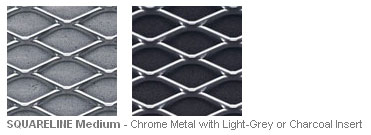

SQUARELINE Medium

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24" x 24" or 24" x 48"
Open Surface: 62.5%

**NOTE*** 50 tile minimum order Requires 12-14 week lead time

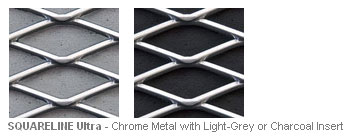

SQUARELINE Ultra

Options: White or Chrome Metal with Light-Grey or Charcoal Insert
Profile: Flat profile ONLY
Panel Sizes: 24" x 24" , 24" x 48" or 48" x 48"
Open Surface: 71.4%

**NOTE*** 50 tile minimum order Requires 12-14 week lead time

Sound Absorption / Noise Reduction
  125Hz 250Hz 500Hz 1KHz 2KHz 4KHz NRC
0.25” Thick
0.50" Thick		 0.37
0.40		 0.59
0.63		 0.30
0.43		 0.50
0.60		 0.75
0.77		 1.09
0.89		 0.55
0.61
